• Laser cutting system continuous cutting of HVAC duct and fittings from coil
• Laser cutting uses less heat-edges are not hardened leading to less wear and tear on other machinery
• Safely remove cut parts offline at the run off table
• Grid table design enables coil feeding and greater cut part access

Specification

• Individually Motorized Uncoiler
• Feeding & Straightening Unit
• Cutting Area
  Width : 4feet / 5feet / 6feet
  Length : 3,600mm / 5,400mm / 6,000mm
• Controller
• PC & Chiller
• 1.0Kw / 2.0Kw Fiber Laser Source
• Transverse Speed : Max. 90M/min
• Rotate Grid by Motor
• 3-Axis Precision Servo Drive
• Automatic Grease Pump
• Run Off Table
• Optional Full Cover
• Optional NC Transfer
• Optional Practicam Software

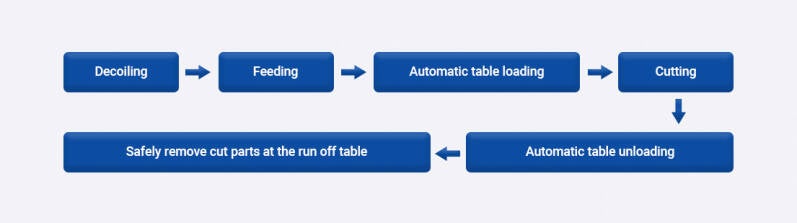

• Manufacturing Process
